Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20

Brand Name : MOUETTE

Model Number : IR16X20X20, IR20X25X20 - Hardened Rolling Bearing Steel Inner Ring

Certification : ISO/TS 16949:2009, ISO 9001:2008

Place of Origin : China

MOQ : 100

Price : USD0.5 per Piece (Send inquiry for details)

Payment Terms : L/C, T/T, D/A, Western Union, Paypal

Supply Ability : 500,000 Pieces per Month.

Delivery Time : 3-30 working days.(Huge Quantity Stocks Available))

Packaging Details : Plastic bags, Cartons and European Standard Plywood Case.

Name : Hardened Rolling Bearing Steel Inner Ring

Material : hardened rolling bearing steel 100Cr6 / GCr15 / AISI52100

Part No. : IR16X20X20 IR20X25X20

Surface Finish : Neutral Machined Bearing Steel Surface

Metric/ Inch : Metric

Basic Construction Type : Thru Hardened Precision machined or ground raceways

Lubrication Groove : available with and without a lubrication hole.

Heat treatment : Quenching

Contact Now

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20



Inner rings are made from hardened rolling bearing steel and have precision machined or ground raceways. They are used where:

  • The shaft cannot be used as a raceway for needle roller and cage assemblies, drawn cup needle roller bearings with open ends or with closed ends and needle roller bearings
  • Needle roller bearings must be combined with wider inner rings in order to allow larger axial displacements of the shaft in relation to the housing
  • Optimum running surfaces are required for seal lips
Inner rings, precision machined:
IR inner rings have a precision machined raceway. Chamfers on the end faces allow easy insertion into the bearing and prevent damage to the seal lips of the bearing. Inner rings are available with and without a lubrication hole.

Hardened Rolling Bearing Steel Inner Ring IR Series Specifications:

Shaft

Diam-

eter

Bearing

Designation

Mass

Approx

 Boundary Dimensions
d F B
mm g mm
14 IR14X25X30   14 25 30
15 IR15X18X12.5 7.2 15 18 12.5
IR15X18X15.5   15 18 15.5
IR15X18X16 9.6 15 18 16
IR15X18X16.5 9.9 15 18 16.5
IR15X18X17.5   15 18 17.5
IR15X18X20.5   15 18 20.5
IR15X199X10   15 19 10
IR15X19X13.5   15 19 13.5
IR15X19X16 12.8 15 19 16
IR15X19X16.5   15 19 16.5
IR15X19X20 16.4 15 19 20
IR15X19X20.5   15 19 20.5
IR15X20X12 12.1 15 20 12
IR15X20X13 13.5 15 20 13
IR15X20X14 14.7 15 20 14
IR15X20x14   15 20 14
IR15X20X15   15 20 15
IR15X20X15.5   15 20 15.5
IR15X20X16   15 20 16
IR15X20X18   15 20 18
IR15X20X20   15 20 20
IR15X20X20.5   15 20 20.5
IR15X20X23 24.4 15 20 23
IR15X20X25.5   15 20 25.5
IR15X20X30.5   15 20 30.5
16 IR16X20X14   16 20 14
IR16X20X16   16 20 16
IR16X20X20   16 20 20
IR16X20X32   16 20 32
IR16X24X20   16 24 20
17 IR17X20X16 10.7 17 20 16
IR17X20X16.5 11.1 17 20 16.5
IR17X20X20 13.5 17 20 20
IR17X20X20.5 13.8 17 20 20.5
IR17X20X30   17 20 30
IR17X20X30.5 20.6 17 20 30.5
IR17X21X16 14.3 17 21 16
IR17X21X16.5   17 21 16.5
17 IR17X21X20 18 17 21 20
IR17X21X20.5   17 21 20.5
IR17X22X13 14.9 17 22 13
IR17X22X14 16.4 17 22 14
IR17X22X15.5   17 22 15.5
IR17X22X16 18.7 17 22 16
IR17X22X20.5   17 22 20.5
IR17X22X23 27.1 17 22 23
IR17X22X26   17 22 26
IR17X22X32   17 22 32
IR17X22X20 33.6 17 24 20
18 IR18X22X17.8   18 22 17.8
IR18X22X19   18 22 19
20 IR20X24X16 16.5 20 24 16
IR20X24X16.5   20 24 16.5
IR20X24X28.5   20 24 28.5
IR20X25X10.5   20 25 10.5
IR20X25X12.5 20 20 25 12.5
IR20X25X15.5   20 25 15.5
IR20X25X17 22.4 20 25 17
IR20X25X18 24.3 20 25 18
IR20X25X20 27.5 20 25 20
IR20X25X20.5 28.2 20 25 20.5
IR20X25X23   20 25 23
IR20X25X25   20 25 25
IR20X25X25.5   20 25 25.5
IR20X25X26   20 25 26
IR20X25X26.5 36.1 20 25 26.5
IR20X25X30 40.9 20 25 30
IR20X25X30.5   20 25 30.5
IR20X25X32   20 25 32
IR20X25X32A   20 25 32
IR20X25X320H   20 25 32
IR20X25X38.5 52.5 20 25 38.5
IR20X26X16   20 26 16
IR20X26X20   20 26 20
IR20X28X20 45.2 20 28 20
IR20X30X30   20 30 30

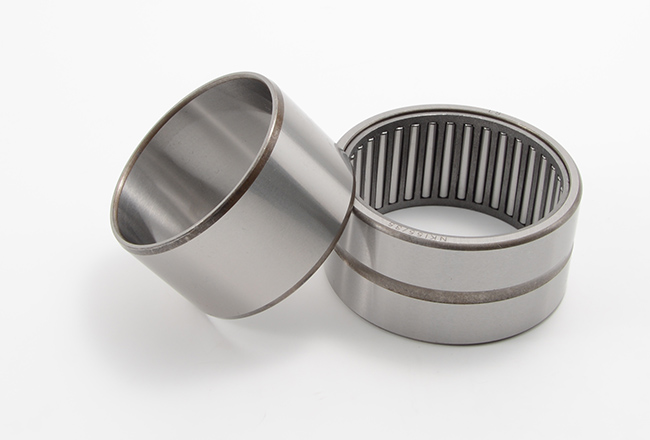

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20



Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20



Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20



Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20



Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20
